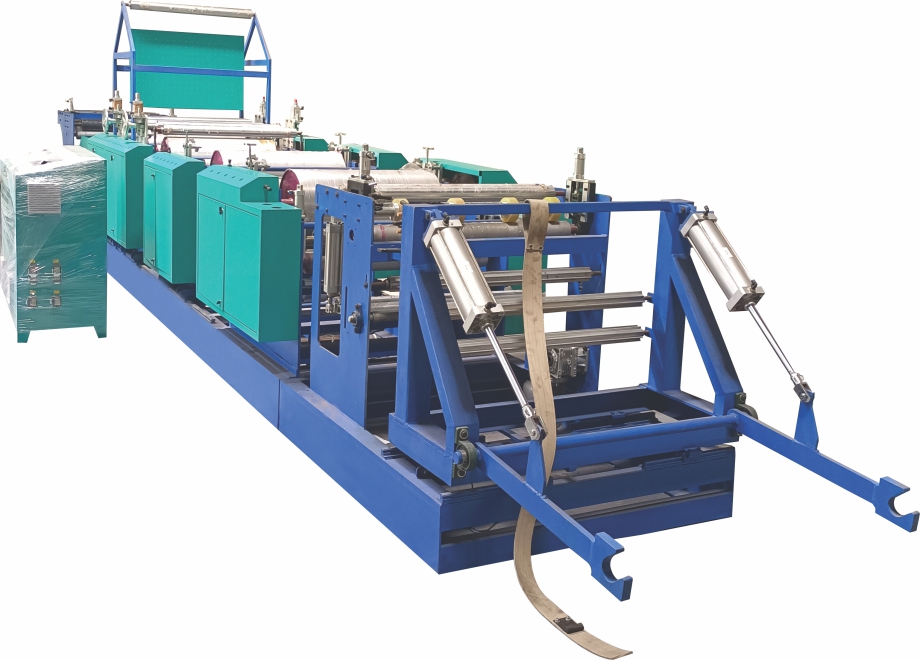

Roll to Roll Flexographic Printing Machine Without Change Cylinder
General Parameter
- Electrical Control: Electric Control through servo motors & inventors along with Touch Screen
- Operational Requirement: Power Supply 440 Volts, 3 Phase + neutral
- Air Compressor: 5HP with 20 CFM Air Dryer
Printing Unit:
- Each Printing unit mainly consists of 2 Nos. Reversible Station
- Minimum cylinder repeat size: 4" / 100mm
- Cylinder repeat size: 1180 mm each station
- 1. No. of impression roller dully balanced, grinded and hard chrome plated
- 1. No. Rubber roller duly balanced
- 1. No. Anilox roller duly balanced functioning of machine shaft winding system
Applications:
- PP / HDPE Bags Laminated and Unlaminated Fabrics
- One Side Pre-Printed BOPP Bags
- Fertilizer Bags
- Cement / Sugar Bags
Technical Data:
| Fabric Width Max | 36" / 914.40 mm |
| Repeat Length (max) | 32" / 863.60 mm |
| Machine Types | As Per Requirement 2 Meter |
| Print Width Max | Minimum 3mm, Maximum 8mm |
| Stereo (photopolymar Plate) Thickness | 60/70 Bags Per Min |
| Max Working Speed | Two To Six Colour Made Up,Eight Colour Customers Requirement |
FEATURES:
- This machine is applied for solvent- based ink and direct printing method for PP woven bag with / without lamination, available for CMYK colour combination to obtain realistic printing quality enhance packing valve.
- With web guiding device to control edge position
- Fully digitalized control setting on friendly human machine interface(HMI)
- Full body cover
- Machine power on and off controlled by HMI
- Double side dried by automatic constant temperature oven.
- Automatic feeding
- One time printing on two sides, accurate colour registration.
- PLC centralized control touch screen to set bag length.
- Colour mark tracking is suitable for reserve printing printed woven bags
- Start up with smook ink automatically
- Press printing without automatic clutch, no defective products when machine turn on or shutdown
- Frequency conversion control unwinding and unwinding part.
- Machine power on or and off is controlled by remote-control Unit
Technical Data
| Type | Speed | Printing Possibility | Connecting Load | Dimention (LWH) Ft. |
|---|---|---|---|---|
| 2 Colour | 60/75 Mtr/Min. | 2+0, 1+1 | 10 HP / 7.5 KW | 25 x 5 x 5 |
| 3 Colour | 60/75 Mtr/Min. | 3+0, 2+1 | 15 HP / 11.5 KW | 30 x 5 x 5 |
| 4 Colour | 60/75 Mtr/Min. | 4+0, 3+1, 2+2 | 25 HP / 18.5 KW | 35 x 5 x 5 |
| 5 Colour | 60/75 Mtr/Min. | 5+0, 4+1, 3+2 | 30 HP / 22.5 KW | 40 x 5 x 5 |
| 6 Colour | 60/75 Mtr/Min. | 6+0, 5+1, 4+2, 3+3, 2+4 | 35 HP / 26 KW | 45 x 5 x 5 |
| 7 Colour | 60/75 Mtr/Min. | 8+0, 7+1, 6+2, 5+3, 4+4 | 42 HP / 31.5 KW | 50 x 5 x 5 |
